kokkos-fft: FFT interface for Kokkos eco-system

Introduction

The fast Fourier transform (FFT) is a family of fundamental algorithms that is widely used in scientific computing and other areas [1]. kokkos-fft is designed to help Kokkos users who are:

• developing a Kokkos application which relies on FFT libraries. E.g., fluid simulation codes with periodic boundaries, plasma turbulence, etc.

• wishing to integrate in-situ signal and image processing with FFTs. E.g., spectral analyses, low pass filtering, etc.

• willing to use de facto standard FFT libraries just like numpy.fft.

kokkos-fft [2] can benefit such users through the following features:

• A simple interface like numpy.fft with in-place and out-of-place transforms:
  Only accepts Kokkos Views to make APIs simple and safe.

• 1D, 2D, 3D standard and real FFT functions (similar to numpy.fft) over 1D to 8D Kokkos Views:
  Batched plans are automatically used if View dimension is larger than FFT dimension.

• A reusable FFT plan which wraps the vendor libraries for each Kokkos backend:
  fftw, cuFFT, hipFFT (rocFFT), and oneMKL are automatically enabled based on the enabled Kokkos backend.

• Support for multiple CPU and GPU backends:
  FFT libraries for the enabled Kokkos backend are executed on the stream/queue used in that Execution space.

• Compile time and/or runtime errors for invalid usage (e.g. View extents mismatch).

How it Works

For those who are familiar with numpy.fft, you may use kokkos-fft quite easily. In fact, all of the numpy.fft functions (numpy.fft.<function_name>) have an analogous counterpart in kokkos-fft (KokkosFFT::<function_name>), which can run on the Kokkos device. In addition, kokkos-fft supports in-place transform and plan reuse capabilities.

Let’s start with a simple example. The following C++ listing shows the 1D real to complex transform using rfft in kokkos-fft.

#include <Kokkos_Core.hpp>
#include <Kokkos_Random.hpp>
#include <KokkosFFT.hpp>
int main(int argc, char* argv[]) {
  Kokkos::ScopeGuard guard(argc, argv);
  const int n = 4;
  Kokkos::View<double*> x("x", n);
  Kokkos::View<Kokkos::complex<double>*> x_hat("x_hat", n/2+1);
  // initialize the input array with random values
  Kokkos::DefaultExecutionSpace exec;
  Kokkos::Random_XorShift64_Pool<> random_pool(/*seed=*/12345);
  Kokkos::fill_random(exec, x, random_pool, /*range=*/1.0);
  KokkosFFT::rfft(exec, x, x_hat);
  // block the current thread until all work enqueued into exec is finished
  exec.fence();
}

This is equivalent to the following Python code.

import numpy as np
x = np.random.rand(4)
x_hat = np.fft.rfft(x)

There are two additional arguments in the Kokkos version:

• exec: Kokkos execution space instance whose internal stream/queue is attached to the plan of backend FFT library.

• x_hat: Kokkos Views where the complex-valued FFT output will be stored. By accepting this view as an argument, the function allows the user to pre-allocate memory and optimize data placement, avoiding unnecessary allocations and copies.

Also, kokkos-fft only accepts Kokkos Views as input data. The accessibility of a View from ExecutionSpace is statically checked and will result in a compilation error if not accessible. See documentations for basic usage.

Solving 2D Hasegawa-Wakatani turbulence with the Fourier spectral method

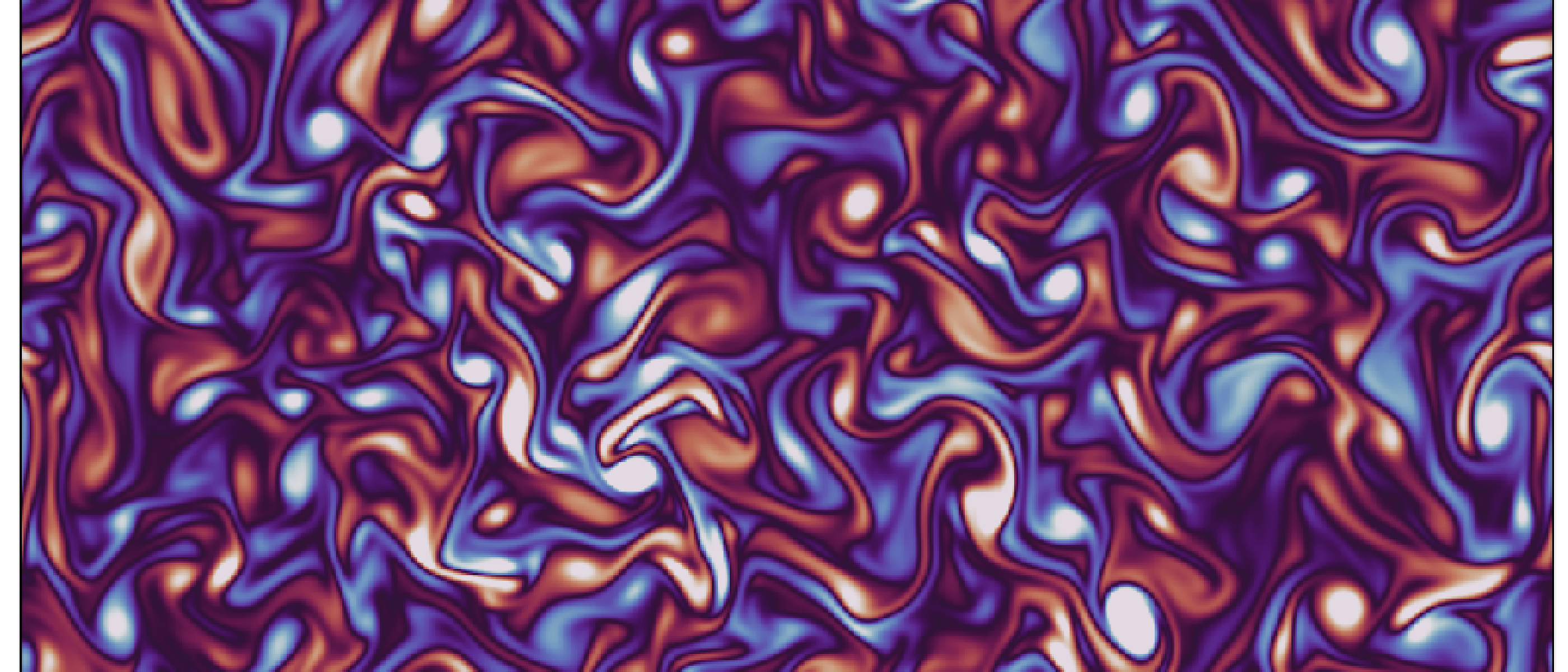

For turbulence simulations, we sometimes consider periodic boundaries by assuming that a system is homogeneous and isotropic. Under periodic boundary conditions, we can solve the system of equations using the Fourier spectral method. Here, we consider a typical 2D plasma turbulence model, called the Hasegawa-Wakatani equation [3] (see the thumbnail for the vorticity structure). Using Kokkos and kokkos-fft, we can easily implement the code, just like Python, while getting a significant acceleration. As described in the documentation, the core computational kernel of the code is the nonlinear term. In Python, it is implemented as follows,

def _poissonBracket(self, f, g):
  ikx_f = 1j * self.grid.kx  * f
  iky_f = 1j * self.grid.kyh * f
  ikx_g = 1j * self.grid.kx  * g
  iky_g = 1j * self.grid.kyh * g

  # Inverse FFT complex [ny, nx/2+1] => real [ny, nx]
  dfdx = self._backwardFFT(ikx_f)
  dfdy = self._backwardFFT(iky_f)
  dgdx = self._backwardFFT(ikx_g)
  dgdy = self._backwardFFT(iky_g)

  # Convolution in real space
  conv = dfdx * dgdy - dfdy * dgdx

  # Forward FFT real [ny, nx] => [ny, nx/2+1]
  poisson_bracket = self._forwardFFT(conv)

  # Reality condition
  poisson_bracket = realityCondition(poisson_bracket)
  return poisson_bracket

We make 4 backward FFTs on ikx_f, iky_f, ikx_g and iky_g. Then, we perform the convolution in real space followed by a forward FFT on the result to compute the Poisson bracket. The equivalent Kokkos code is as follows,

template <typename FViewType, typename GViewType, typename PViewType>
void poissonBracket(const FViewType& fk, const GViewType& gk, PViewType& pk) {
  derivative(fk, gk, m_ik_fg_all);
  backwardFFT(m_ik_fg_all, m_dfgdx_all);

  // Convolution in real space
  convolution(m_dfgdx_all, m_conv);

  // Forward FFT
  forwardFFT(m_conv, pk);

  // ky == 0 component
  auto sub_pk = Kokkos::subview(pk, Kokkos::ALL, 0, Kokkos::ALL);
  realityCondition(sub_pk, m_mask);
}

The functions derivative and convolution are parallelized with Kokkos::parallel_for using a MDRangePolicy. For example, derivative is computed in the following manner. It should be noted that we store the derivatives ikx_f, iky_f, ikx_g and iky_g as subviews of a single view ik_fg_all. This way, we only need to perform one batched backward FFT over derivatives rather than calling FFTs multiple times for all derivatives.

template <typename FViewType, typename GViewType, typename FGViewType>
void derivative(const FViewType& fk, const GViewType& gk,
                FGViewType& ik_fg_all) {
  auto ikx_f =
      Kokkos::subview(ik_fg_all, pair_type(0, 2), Kokkos::ALL, Kokkos::ALL);
  auto iky_f =
      Kokkos::subview(ik_fg_all, pair_type(2, 4), Kokkos::ALL, Kokkos::ALL);

  auto ikx_g = Kokkos::subview(ik_fg_all, 4, Kokkos::ALL, Kokkos::ALL);
  auto iky_g = Kokkos::subview(ik_fg_all, 5, Kokkos::ALL, Kokkos::ALL);
  auto kx    = m_grid->m_kx;
  auto kyh   = m_grid->m_kyh;

  const Kokkos::complex<double> z(0.0, 1.0);
  constexpr int nb_vars = 2;

  range2D_type range(point2D_type{{0, 0}}, point2D_type{{m_nkyh, m_nkx2}},
                     tile2D_type{{TILE0, TILE1}});

  Kokkos::parallel_for(
      range, KOKKOS_LAMBDA(int iky, int ikx) {
        const auto tmp_ikx = z * kx(ikx);
        const auto tmp_iky = z * kyh(iky);
        for (int in = 0; in < nb_vars; in++) {
          const auto tmp_fk   = fk(in, iky, ikx);
          ikx_f(in, iky, ikx) = tmp_ikx * tmp_fk;
          iky_f(in, iky, ikx) = tmp_iky * tmp_fk;
        }
        const auto tmp_gk = gk(iky, ikx);
        ikx_g(iky, ikx)   = tmp_ikx * tmp_gk;
        iky_g(iky, ikx)   = tmp_iky * tmp_gk;
      });
}

For forward and backward FFTs, we create plans during initialization which are reused by the KokkosFFT::execute function. The following function implements the forward FFT followed by unpacking.

template <typename InViewType, typename OutViewType>
void forwardFFT(const InViewType& f, OutViewType& fk) {
  KokkosFFT::execute(*m_forward_plan, f, m_forward_buffer);
  auto forward_buffer    = m_forward_buffer;
  auto norm_coef         = m_norm_coef;
  int nkx2 = m_nkx2, nkx = (m_nkx2 - 1) / 2, ny = m_ny, nv = 2;
  range3D_type range(point3D_type{{0, 0, 0}},
                     point3D_type{{nv, m_nkyh, nkx + 1}},
                     tile3D_type{{2, TILE0, TILE1}});
  Kokkos::parallel_for(
      "FFT_unpack", range, KOKKOS_LAMBDA(int iv, int iky, int ikx) {
        fk(iv, iky, ikx) = forward_buffer(iv, iky, ikx) * norm_coef;
        int ikx_neg = nkx2 - ikx;
        int iky_neg = (ny - iky), iky_nonzero = iky;
        if (ikx == 0) ikx_neg = 0;
        if (iky == 0) {
          iky_neg     = ny - 1;
          iky_nonzero = 1;
        }
        fk(iv, iky_nonzero, ikx_neg) =
            Kokkos::conj(forward_buffer(iv, iky_neg, ikx)) * norm_coef;
      });
}

The implementation together with detailed description can be found in the examples directory.

Benchmark

We have performed a benchmark of this application over multiple backends. We performed a simulation for 100 steps with a resolution of 1024 x 1024 while I/Os are disabled. The following table shows the achieved performance.

As expected, the Python version is the simplest in terms of lines of code (LOC). With Kokkos and kokkos-fft, the same logic can be implemented without significantly increasing the source code size (roughly 1.5 times longer). However, the performance gain is enormous, allowing a single and simple code runs on multiple architectures efficiently. Note that this performance improvement largely reflects the fact that KokkosFFT is using the various optimized hardware-specific FFT libraries under the hood.

Future developments

We are planning to add the following functionalities. Contributions to the project are highly welcomed (see developer guide).

• Multi-GPU support with MPI

• Device callable batched capability of FFTs like kokkos-kernels

• Supporting callbacks if backend library supports that
